Per(Forma).

A theater across from Republic Square at 5th and Guadalupe. Performance, in every form of the building. Alive when the theater is lit. Alive when it is dark. The bottom entrance becomes a pseudo-theater, a hangout, a place to be in the city without a ticket. The cyclops eye opens. The screen lifts. The street watches in. Above, the X-factor: stacked amenity floors tying theater to tower.

Project Per(Forma)
Professor Matt Fajkus
Location Austin
Type Civic · Theater
Year Fall 2024
Team Ryan Jackovetty & Manuel Olivares
Tools Archicad · Rhino · Lumion · Adobe Suite
Render 1
01Render 1

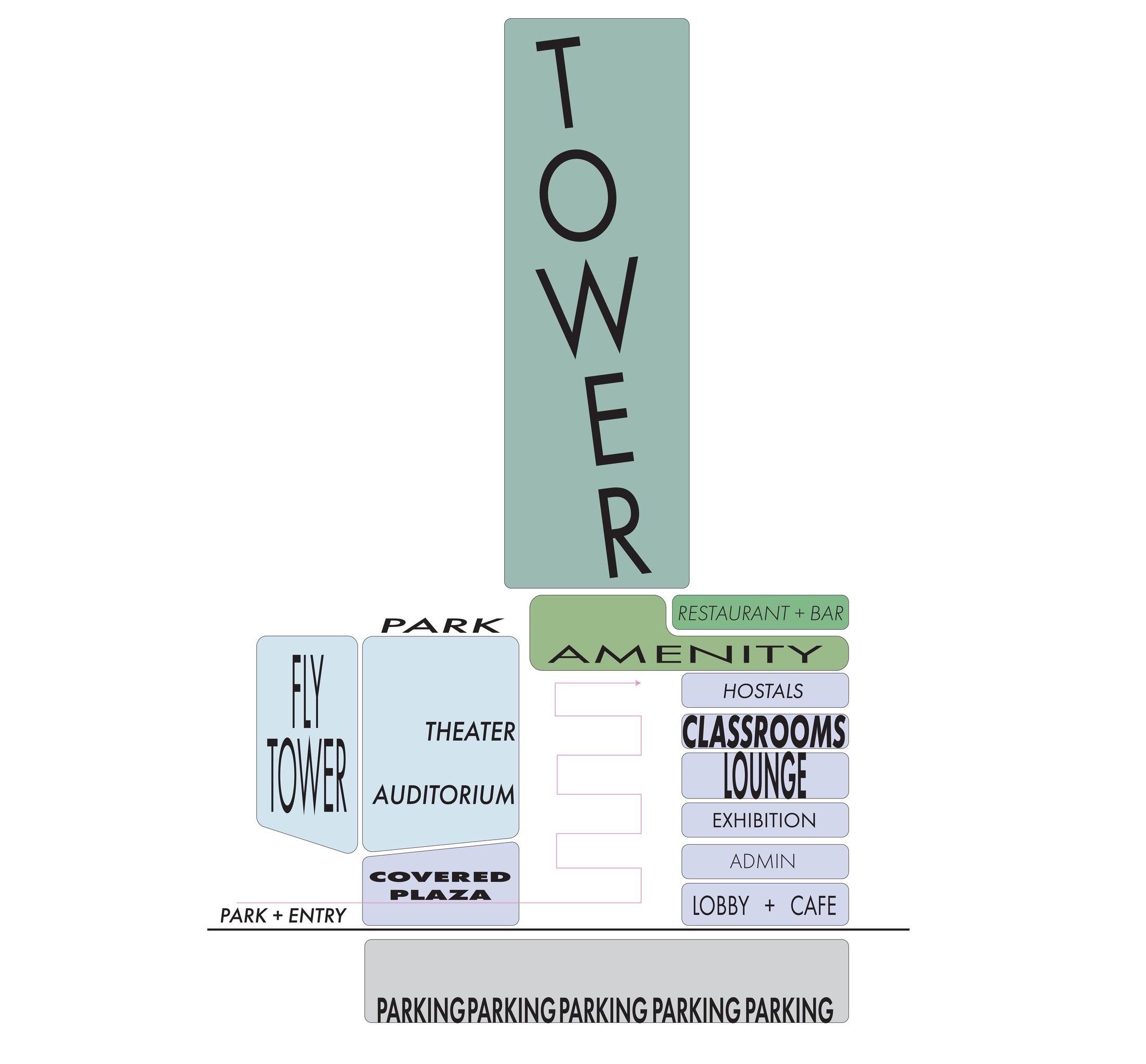

Program Diagram
02Program Diagram

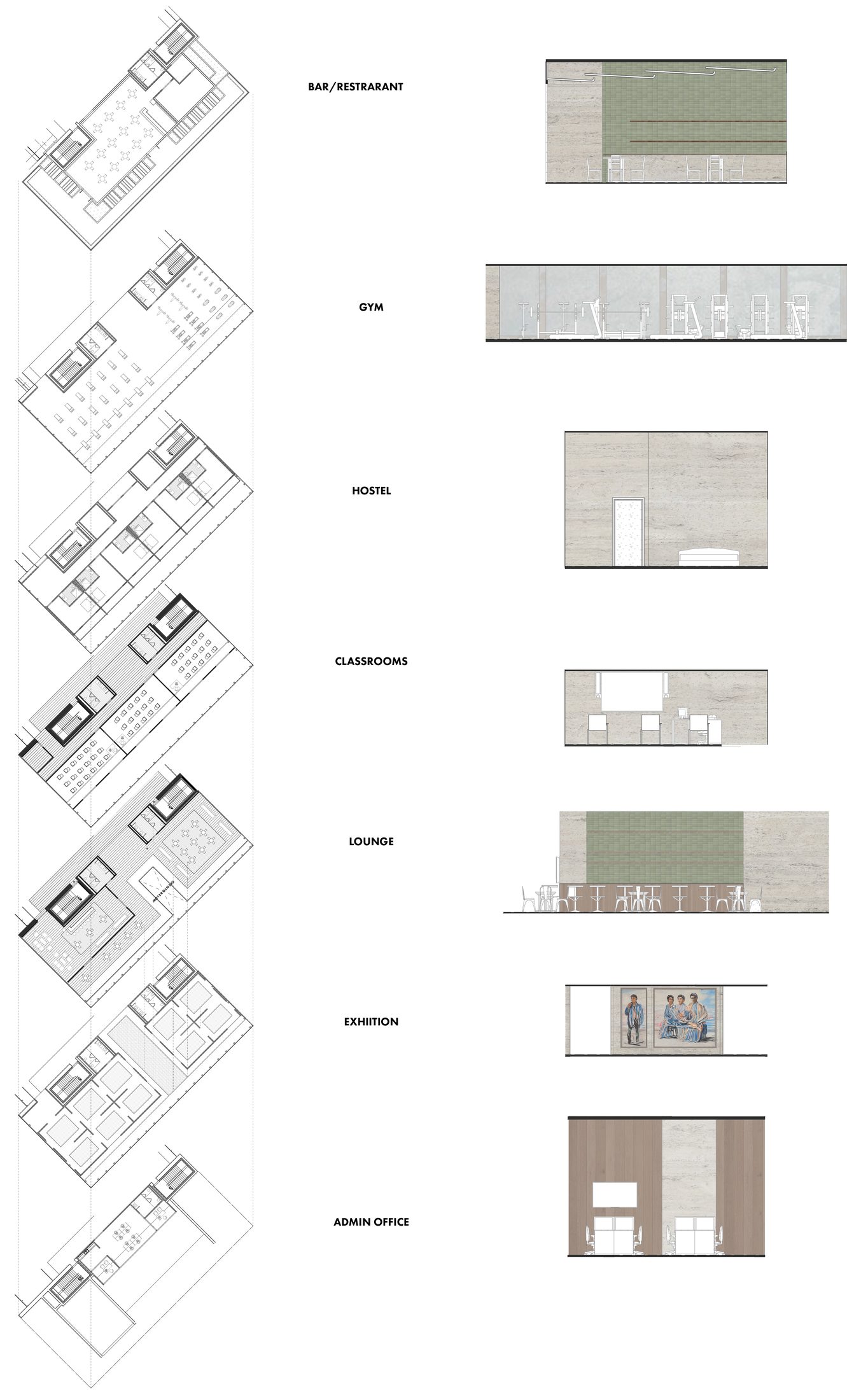

X-Factor Elevations
03X-Factor Elevations

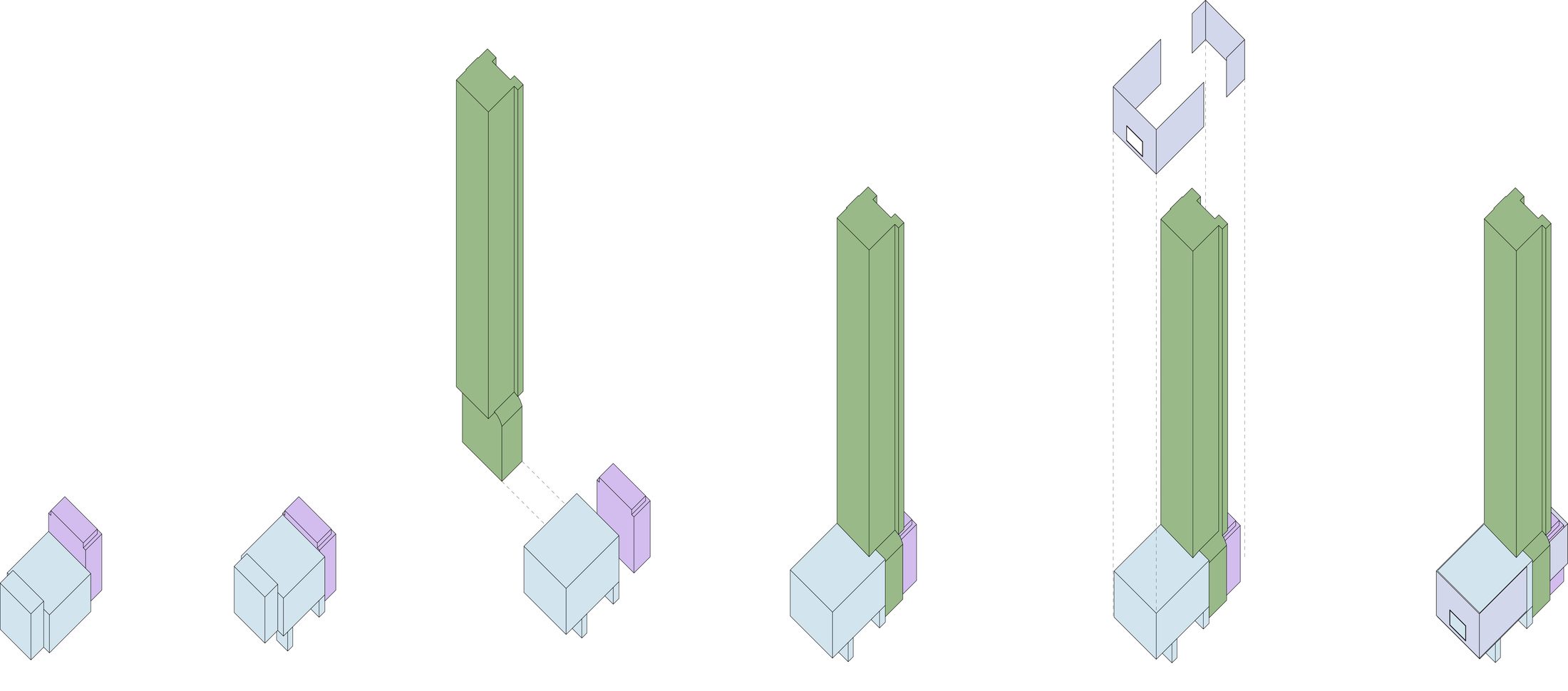

Form Diagram
04Form Diagram

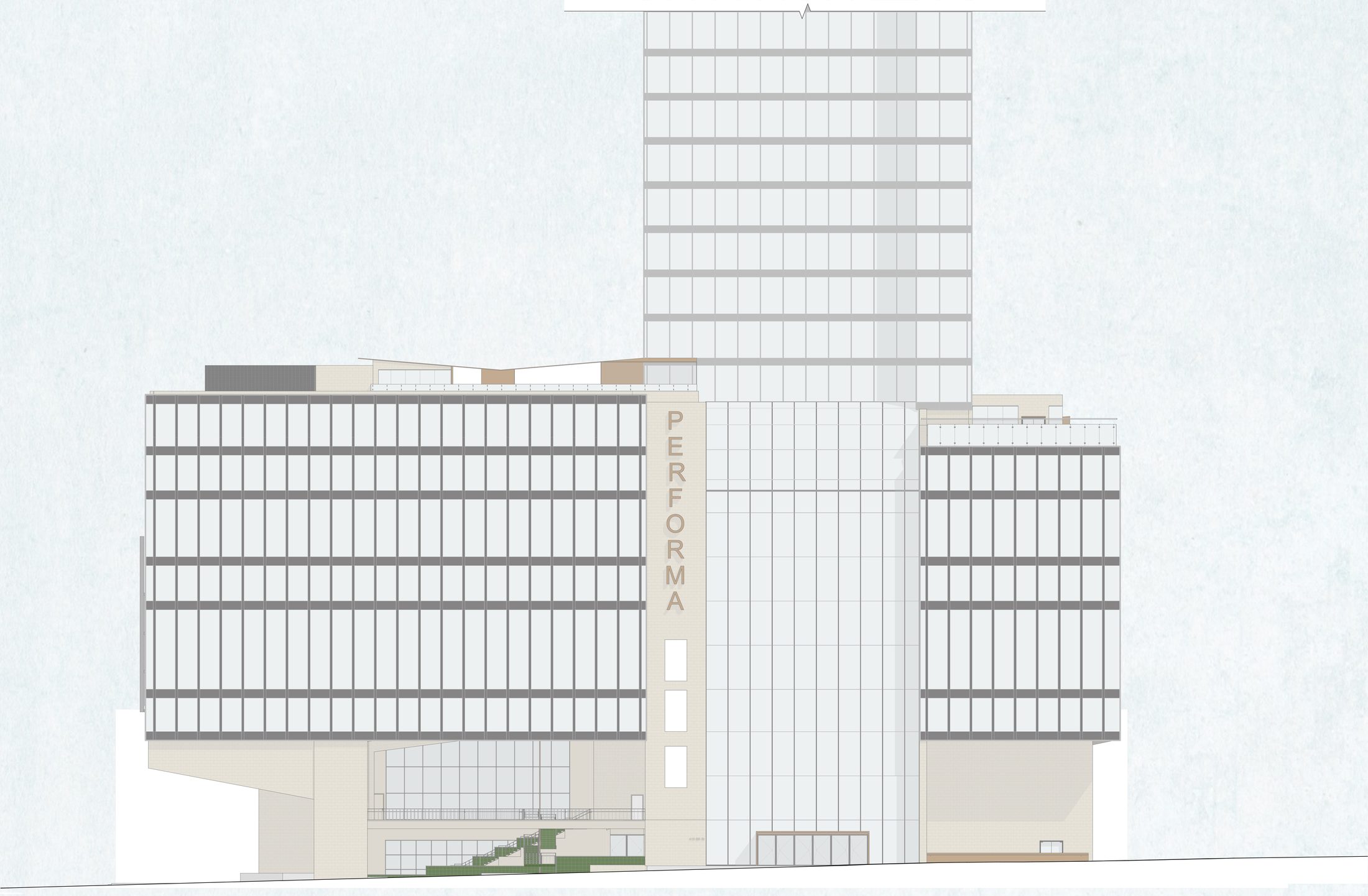

Elevation 1
05Elevation 1

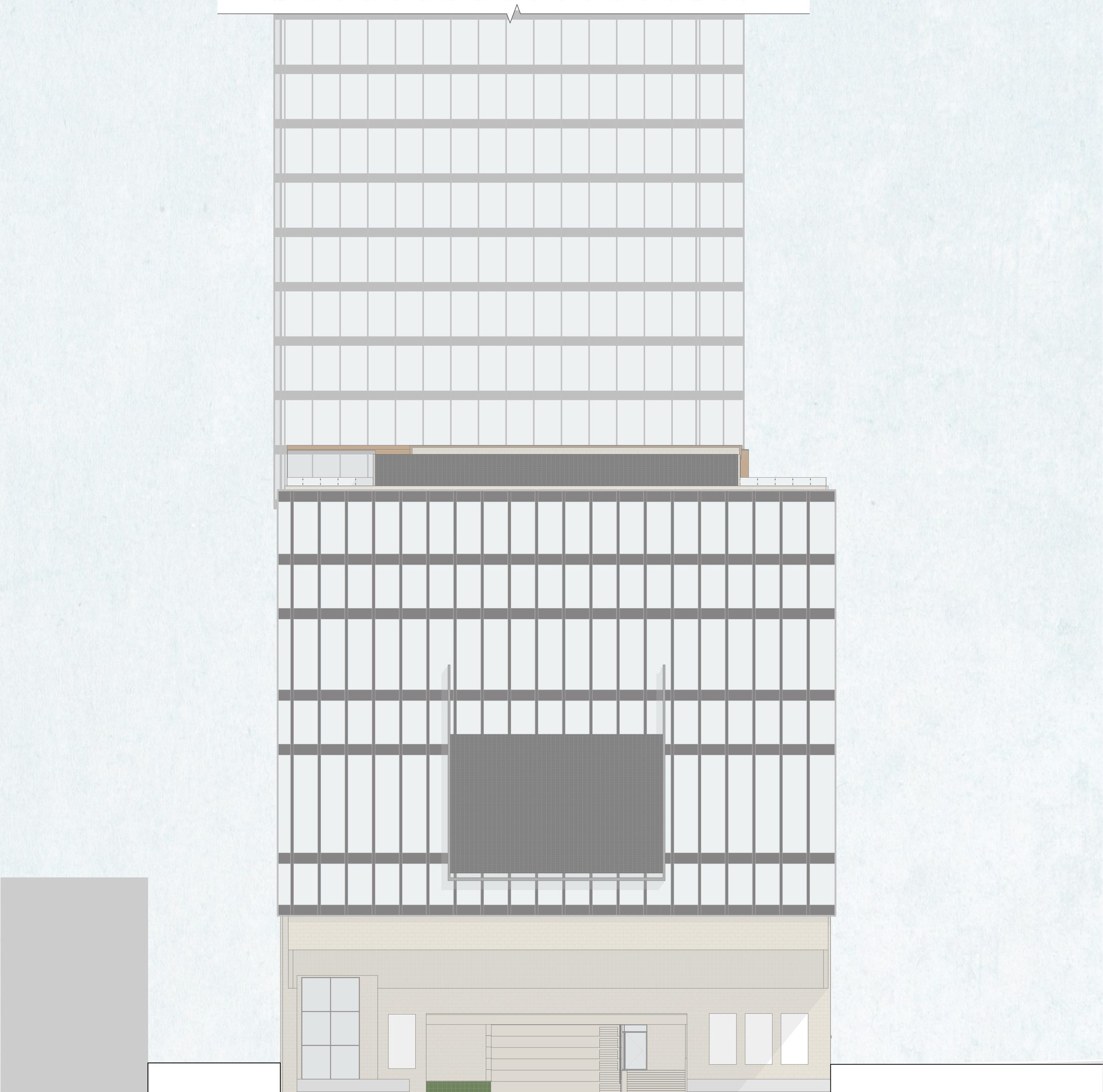

Elevation 2
06Elevation 2

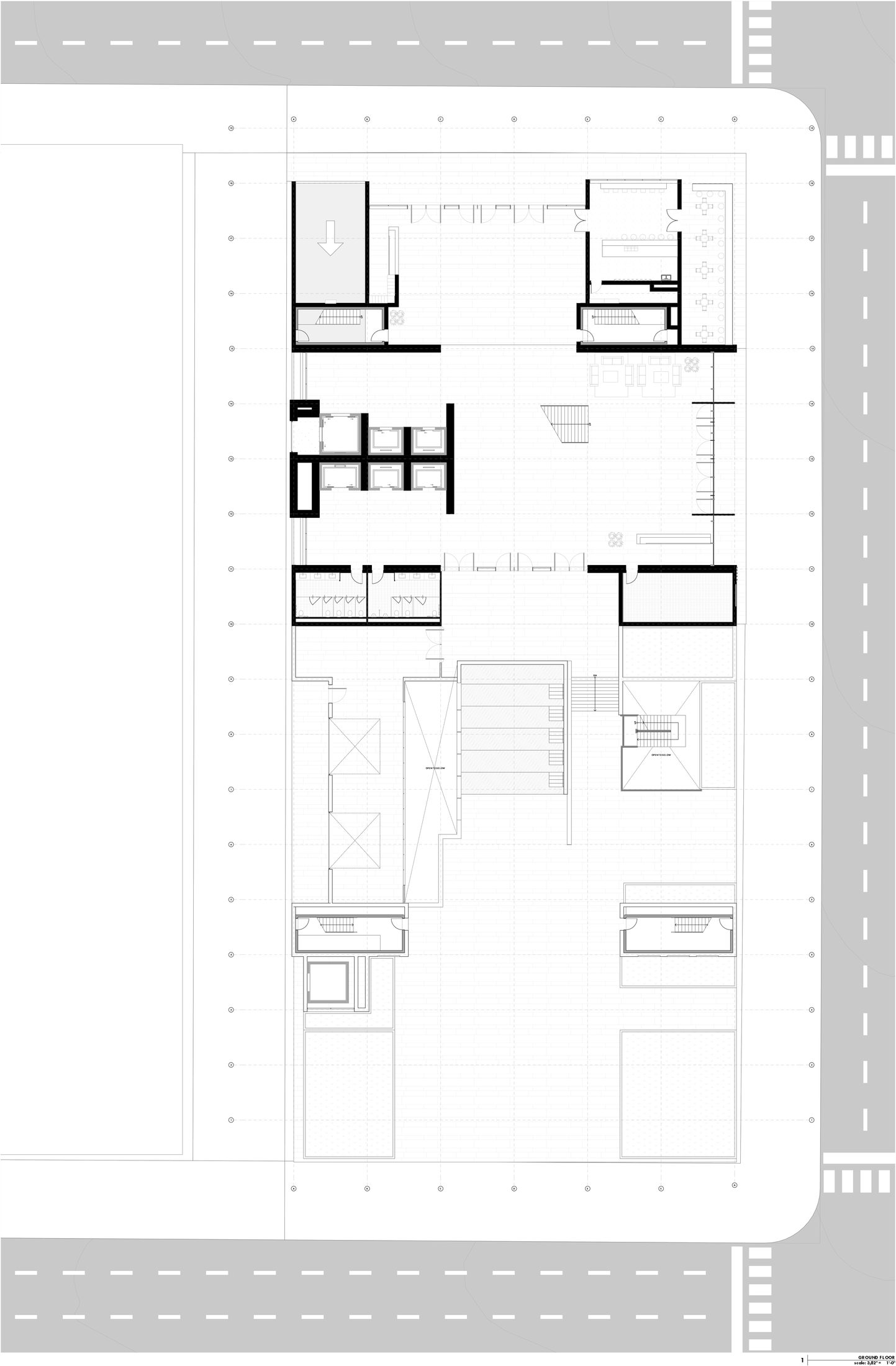

Floor Plan 1
07Floor Plan 1

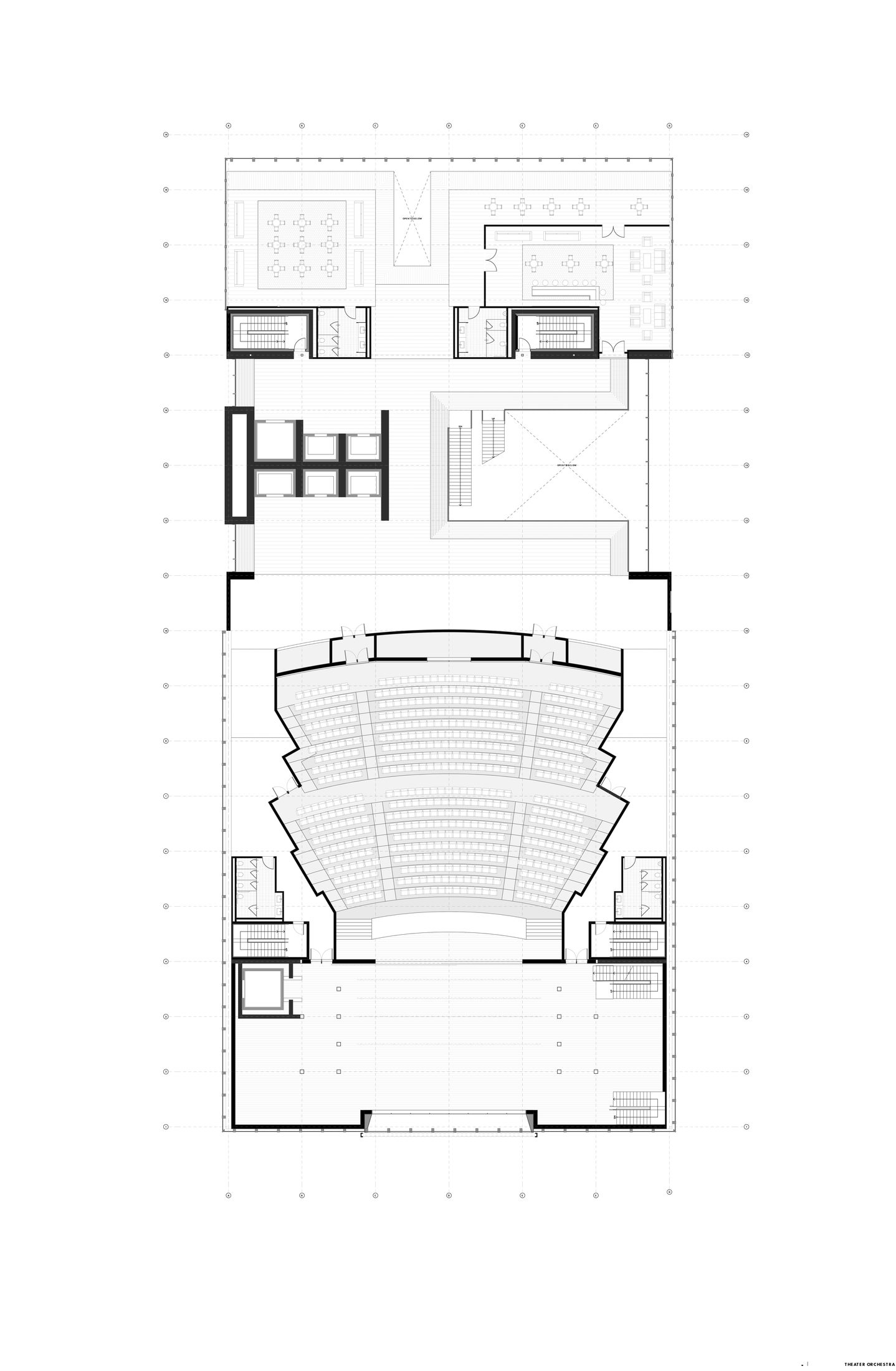

Floor Plan 2
08Floor Plan 2

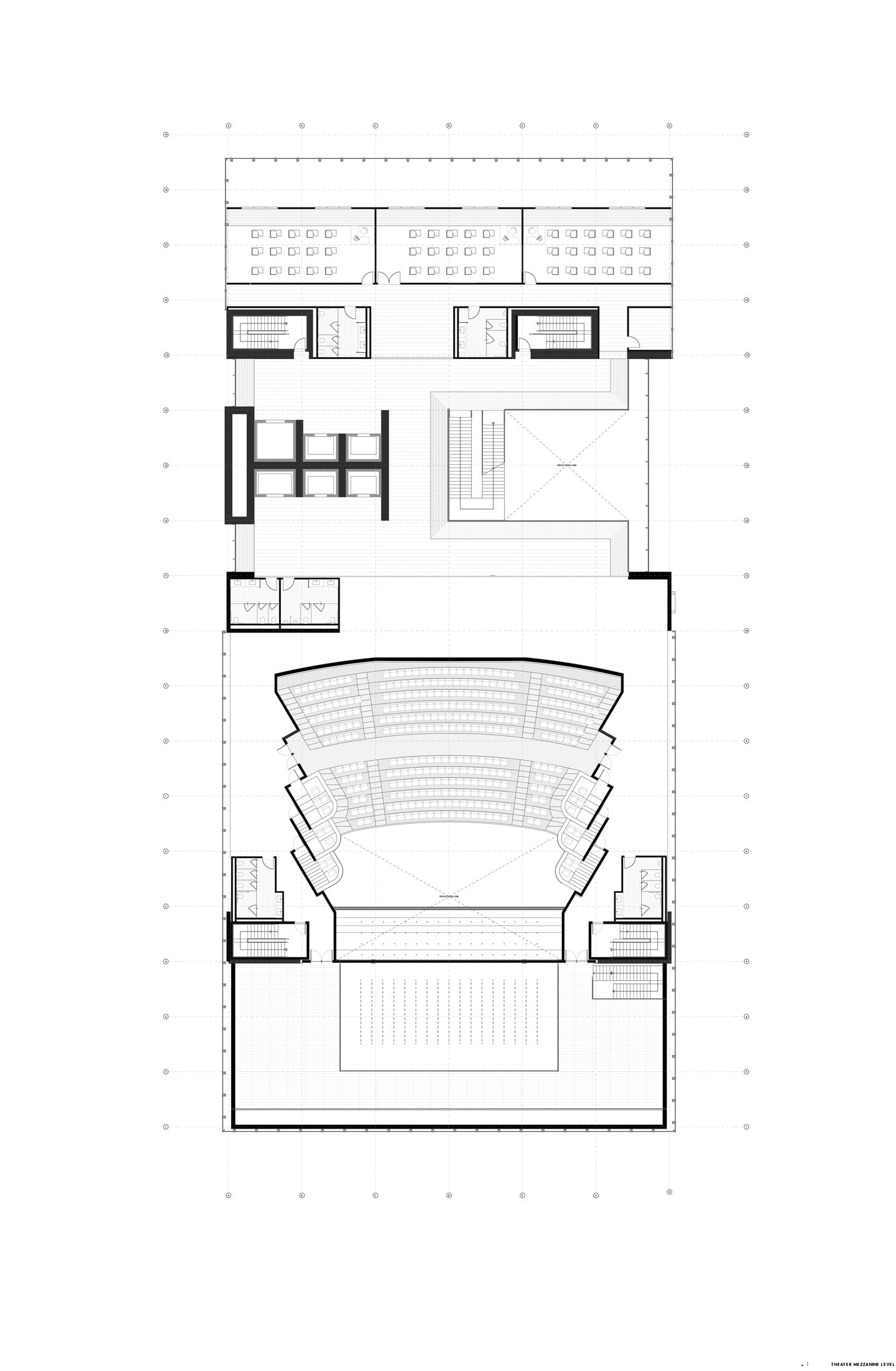

Floor Plan 3
09Floor Plan 3

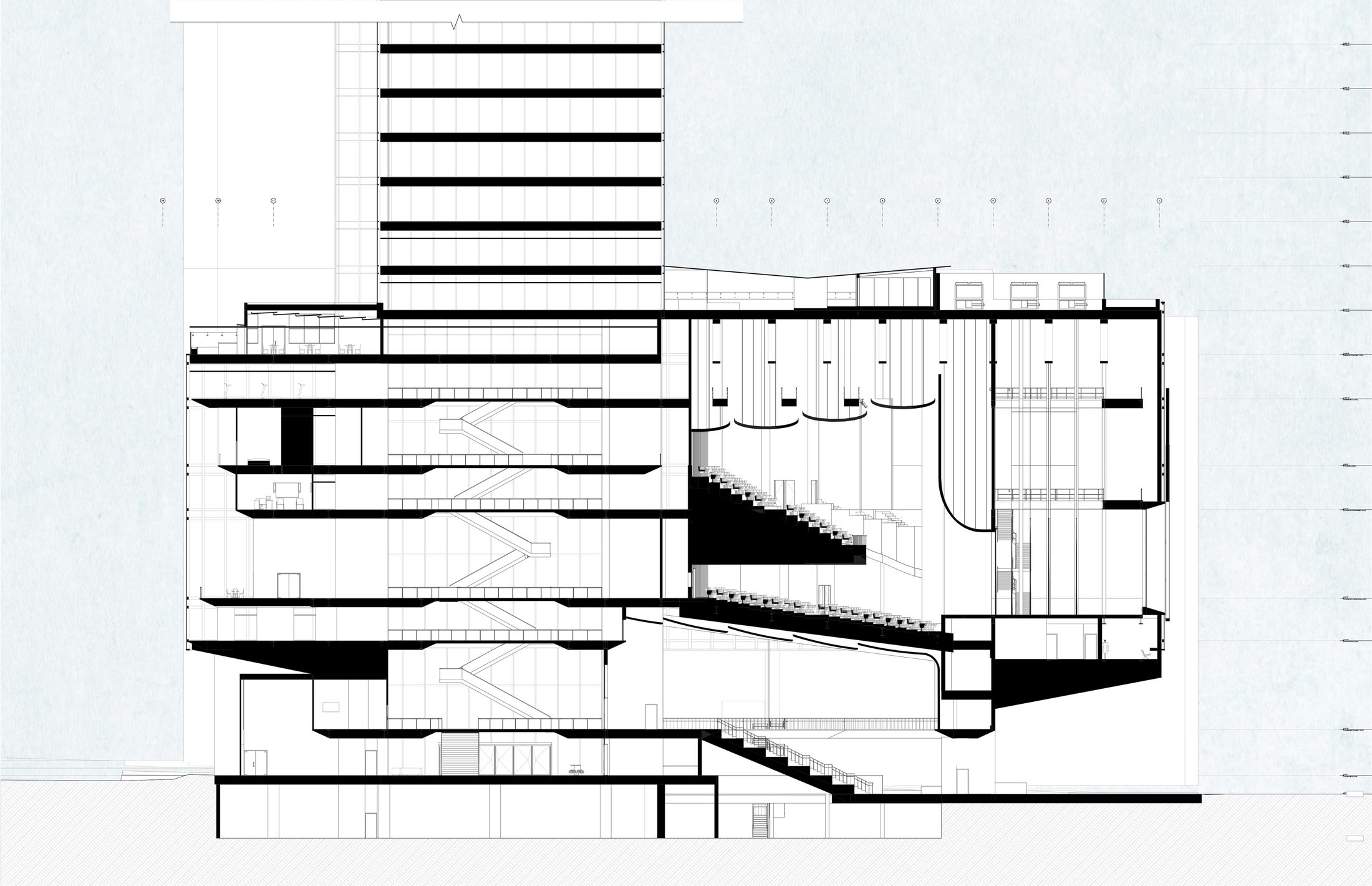

Section 1
10Section 1

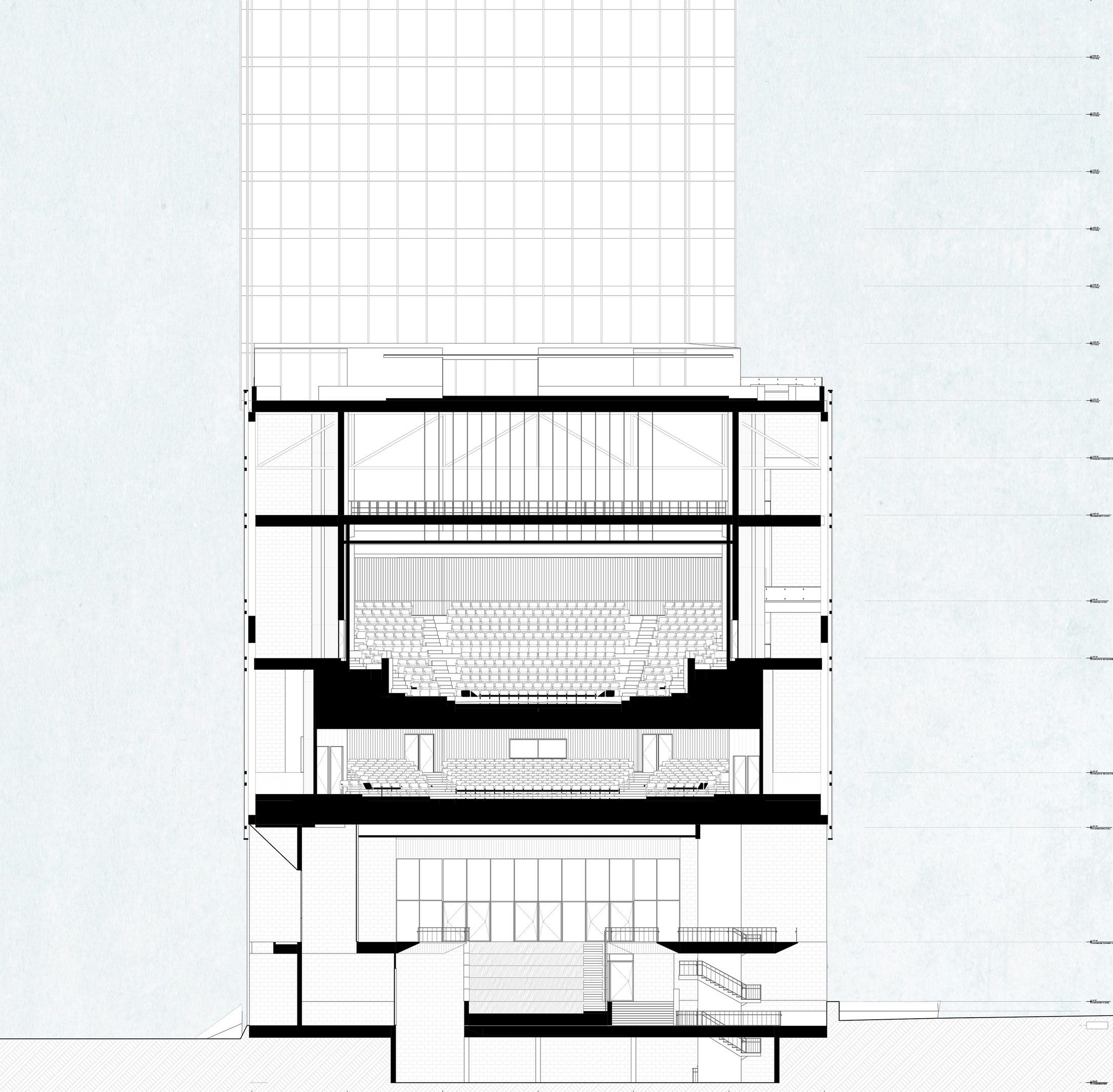

Section 2
11Section 2

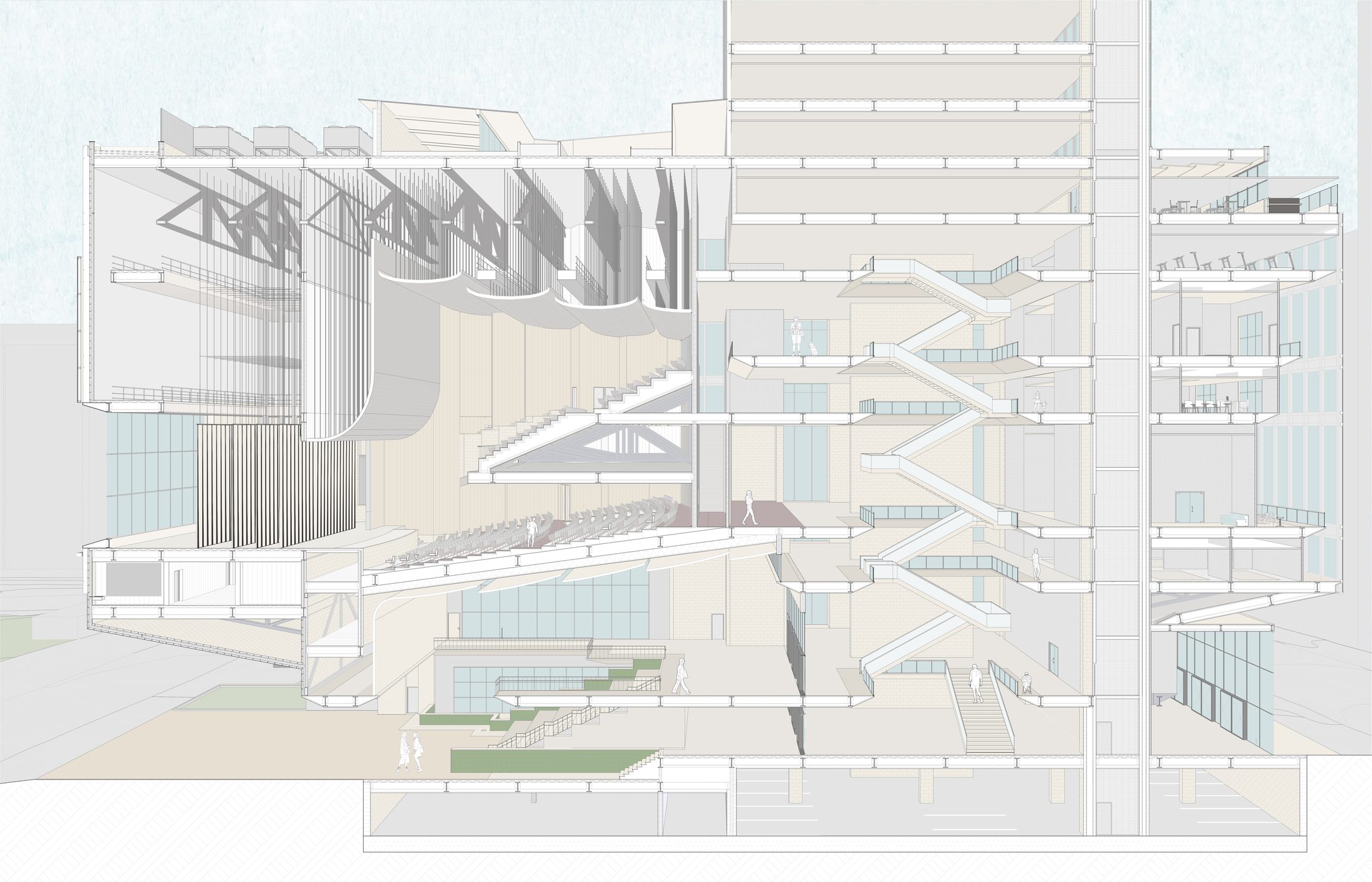

Section Perspective
12Section Perspective

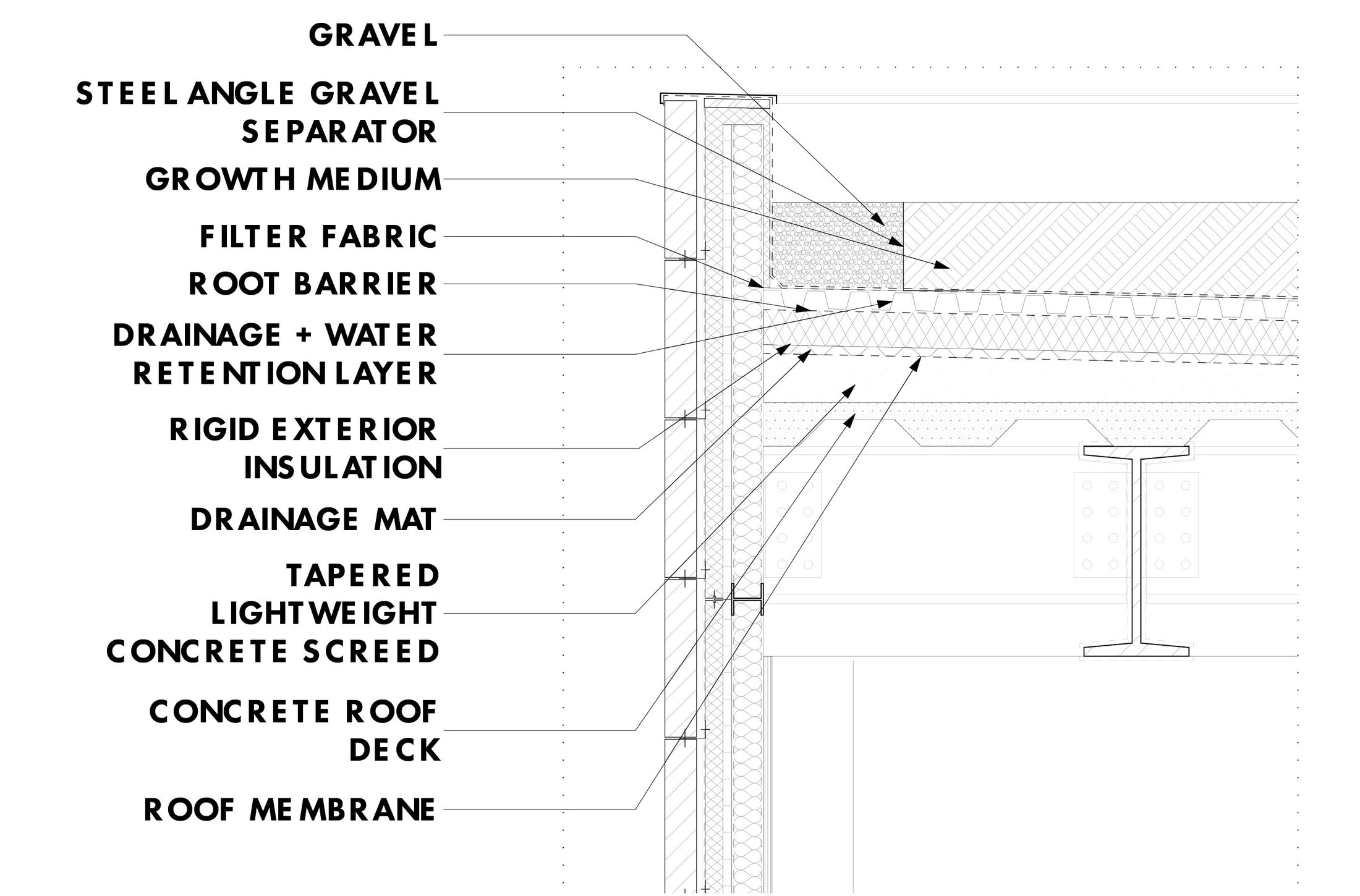

Roof Detail
13Roof Detail

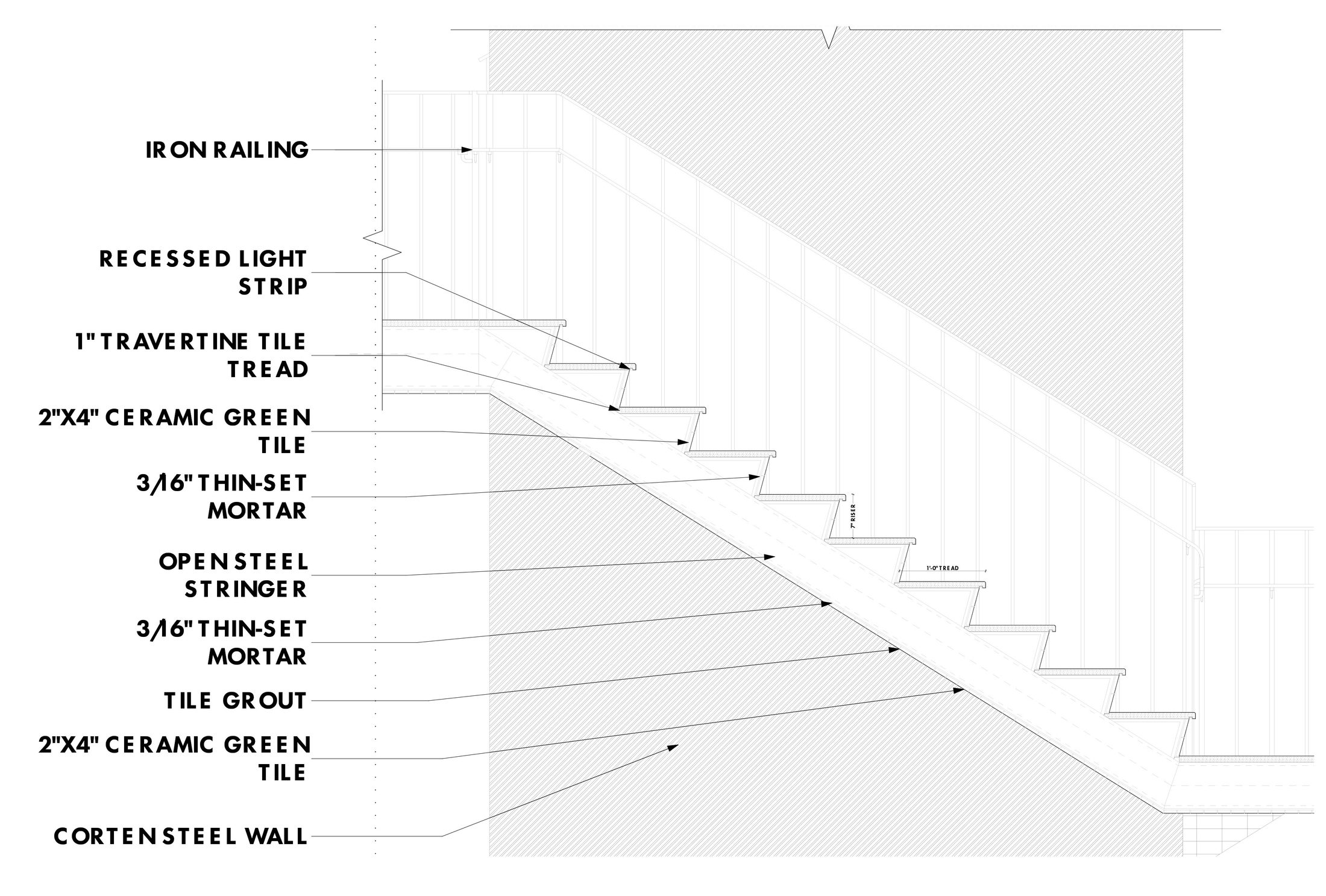

Stair Detail
14Stair Detail

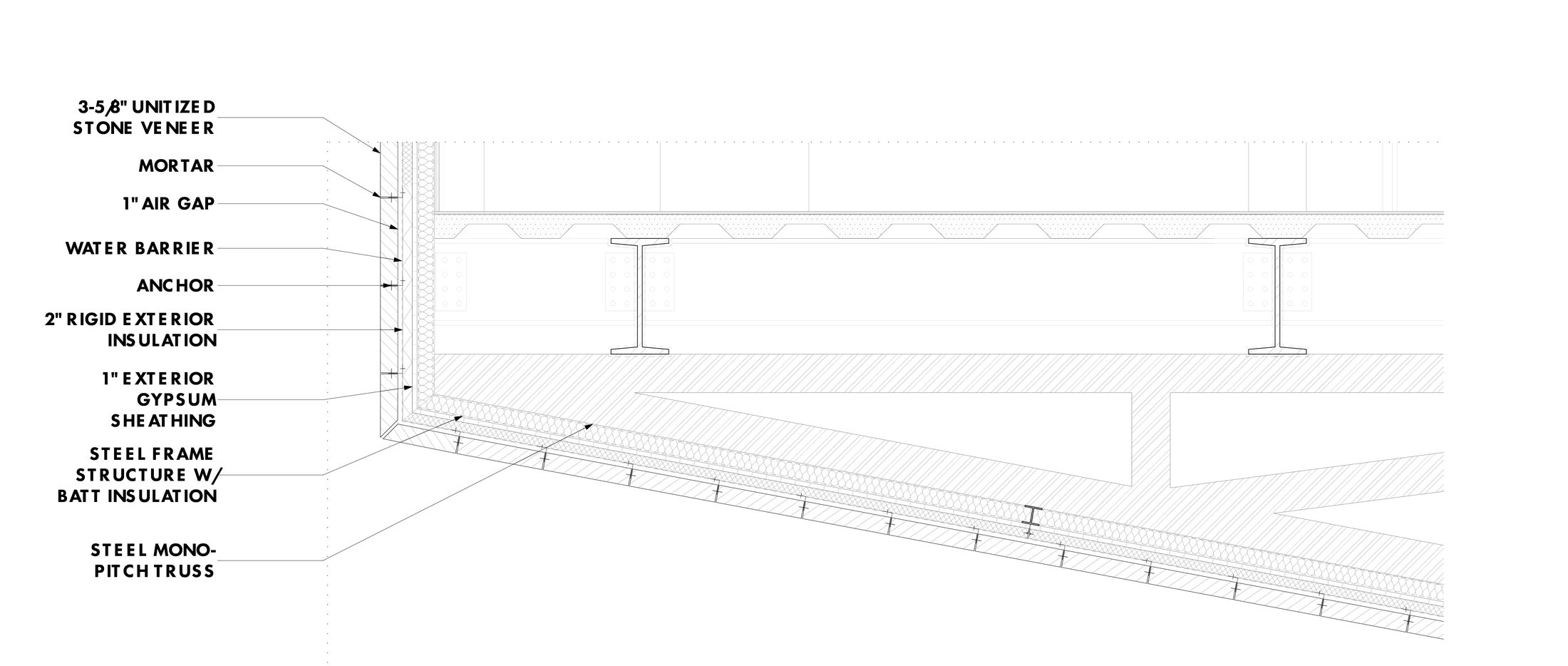

Underbelly Detail
15Underbelly Detail

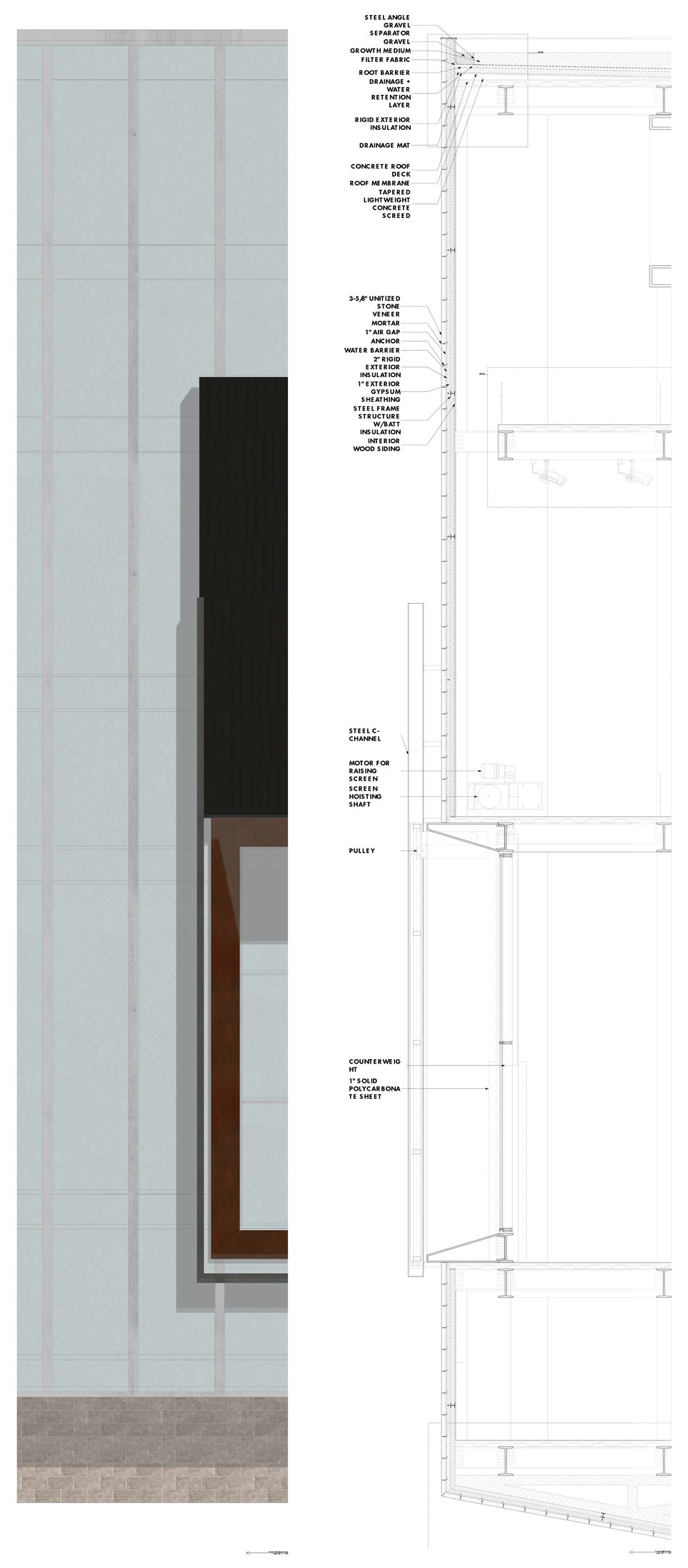

Wall Detail
16Wall Detail

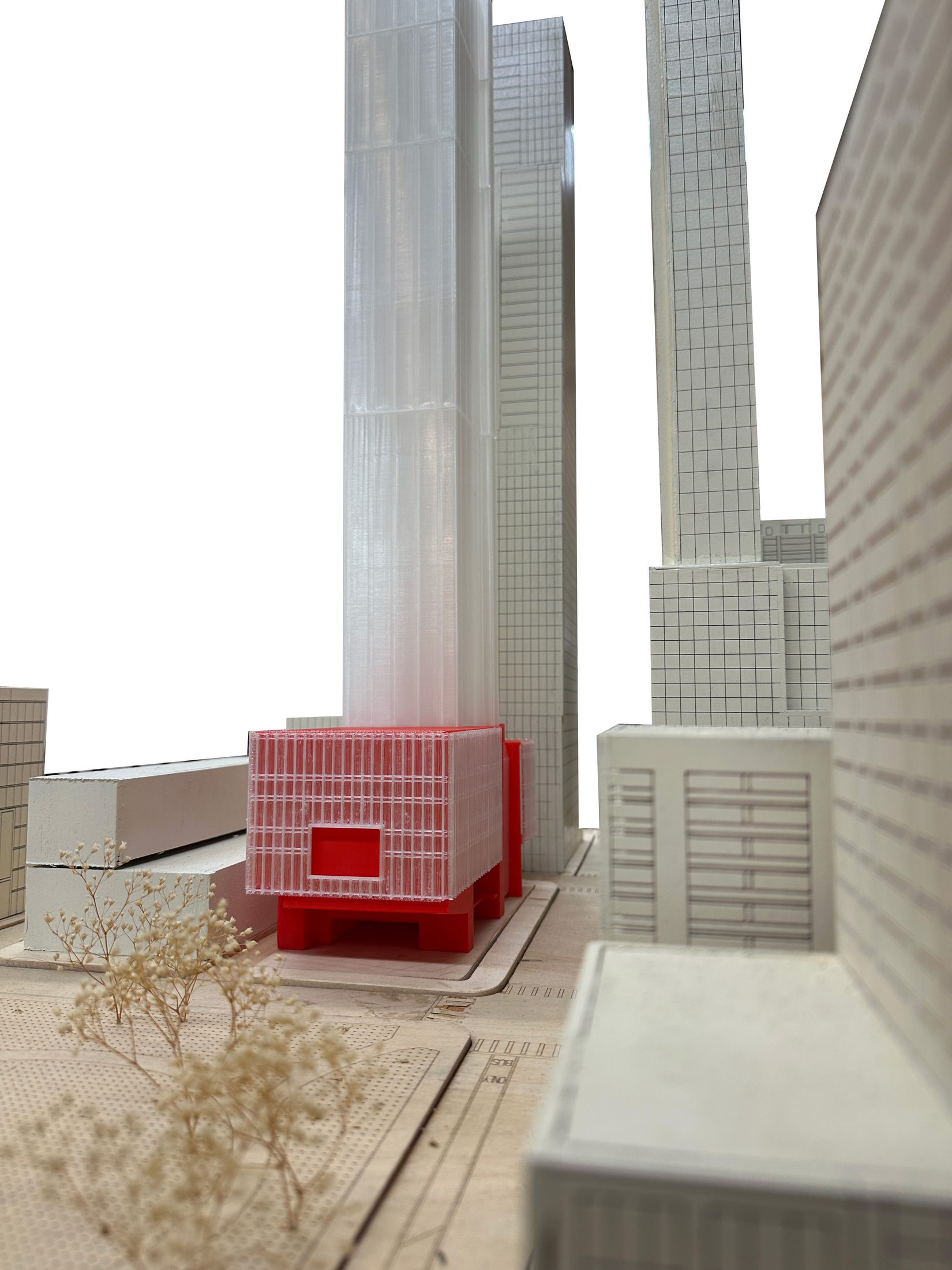

Model
17Model

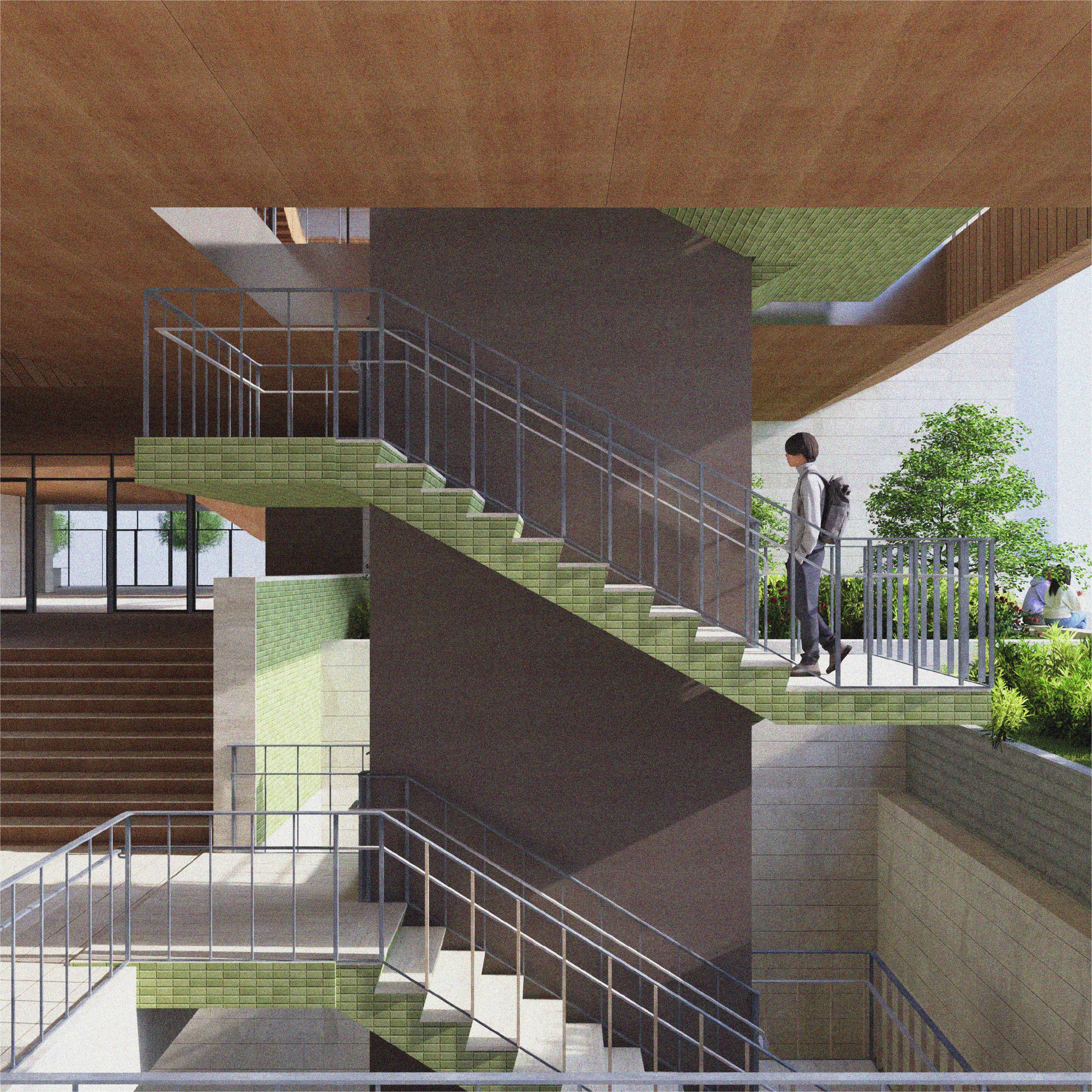

Render 2
18Render 2

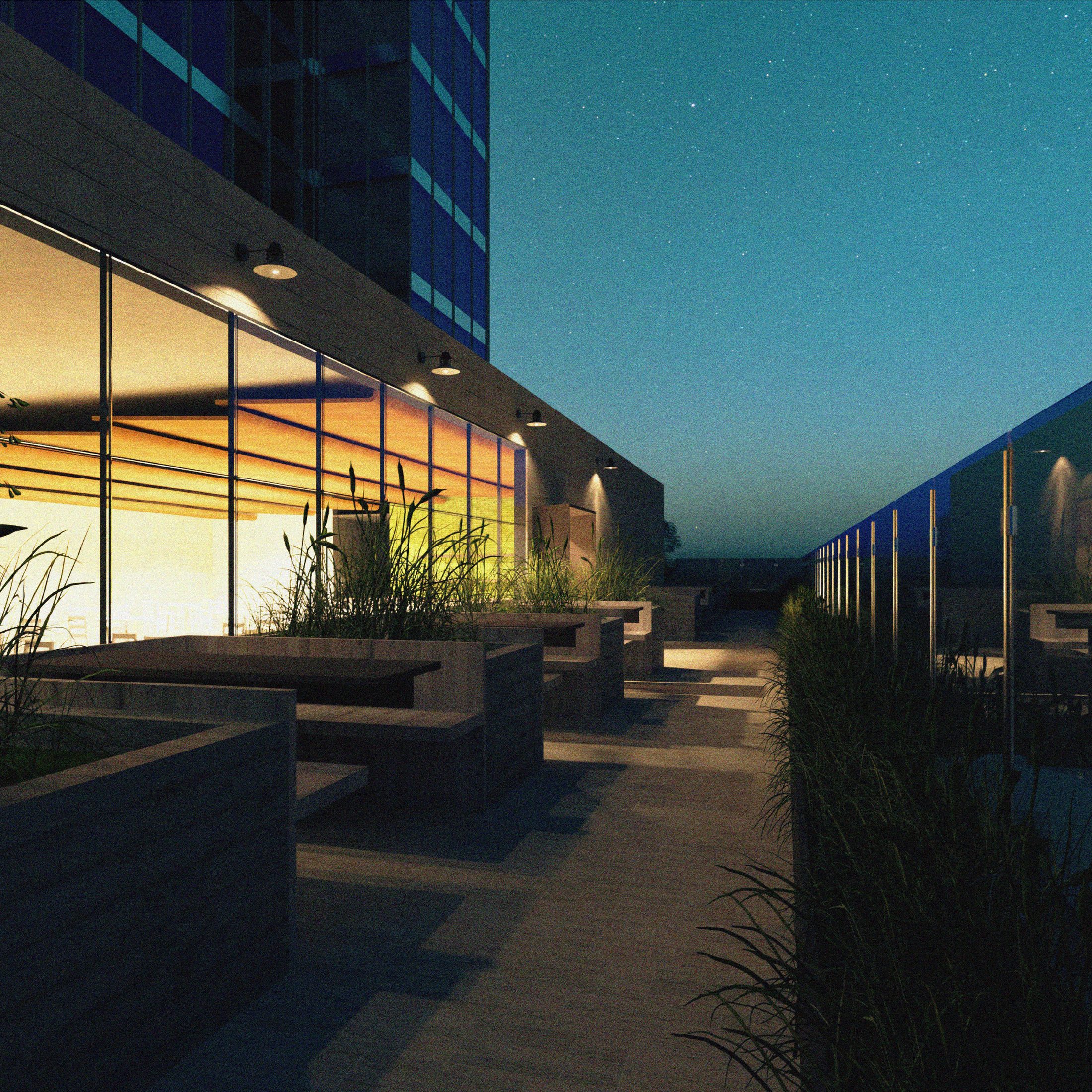

Render 3
19Render 3
